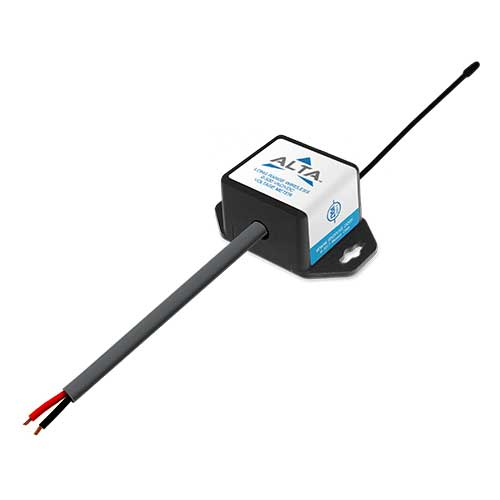

Description
Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is a “voltage observer”. 1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading) Response Time: 40 ms Resolution: .25 VACrms / .35 VDC/Peak Voltage Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.) Absolute Maximum Voltage: 600 VAC RMS Supported Operation Modes: VAC RMS (root mean squared) Accuracy: +/- (1 VAC RMS + 3% of reading) Resolution: 25 VAC RMS Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) Weight: 0.9 oz. (25.51 g) Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery Dimension: 2.0 in x 1.125 in x 0.875 in Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F ) Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F ) Supply Voltage: 2.0 - 3.8 VDC Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. ** Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures Enclosure Material: ABS Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-W1-VM-500 Features
Voltage Meter Specifications
Variation Specifications
ALTA Coin Cell Specifications
ALTA 900 MHz Specifications
