Description

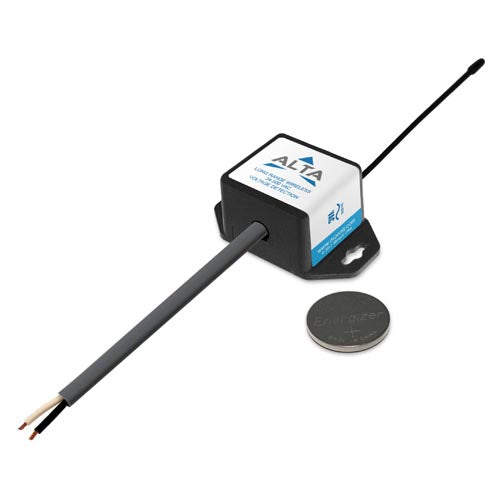

The AC Voltage Detection Sensor notifies of the presence or absence of electricity. It is intended for use on devices using supply power from 24 - 500 VAC. Not intended for voltages higher than 500 VAC and also not intended for use with DC sources. Perfect for HVAC systems, sprinkler systems, sump pumps and any other type of electrical appliance monitoring. This sensor triggers on the state change from presence to absence of voltage and vice versa. The data is displayed as either "No Voltage" or "Voltage Detected". 1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Absolute Maximum Voltage: 600 VACrms / 850 VDC Minimum Voltage Detected: -850 VDC Accuracy: +/- (1 VACrms + 3% of reading) Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading) Response Time: 40 ms Supported Operation Modes: VACrms (root mean squared) Peak Voltage DC Voltage Resolution: .25 VACrms / .35 VDC/Peak Voltage Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.) Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) Weight: 0.7 oz. (19.84 g) Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery Dimension: 2.0 in x 1.125 in x 0.875 in Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F ) Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F ) Supply Voltage: 2.0 - 3.8 VDC Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. ** Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures Enclosure Material: ABS Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-W1-VD-AC Features
Voltage Detection Sensor Specifications
Variation Specifications
ALTA Coin Cell Specifications
ALTA 900 MHz Specifications
