Description

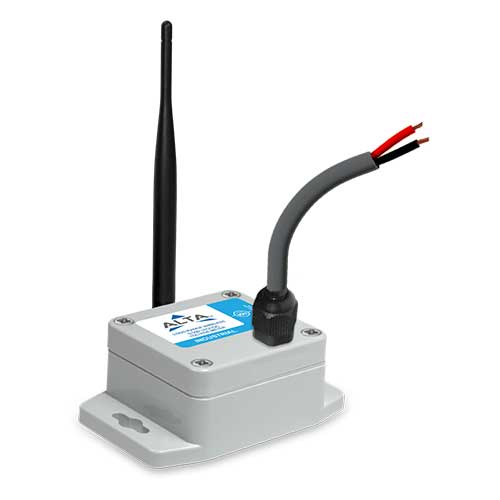

Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 500 VAC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is a “voltage observer”. 1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Calibrated Accuracy with Appropriate Offset: +/- (.5 VACrms + 1.5% of reading) Response Time: 40 ms Resolution: .25 VACrms / .35 VDC/Peak Voltage Lead Wire Length: 2 Wires, 1 ft (12 in), Black (Hot), White (Neutral), 18 AWG (Custom lengths available upon request.) Absolute Maximum Voltage: 600 VAC RMS Supported Operation Modes: VAC RMS (root mean squared) Accuracy: +/- (1 VAC RMS + 3% of reading) Resolution: 25 VAC RMS Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) UL Rating: UL Listed to UL508-4x specifications (File E194432) Weight: 4.5 oz. (128 g) Supply Voltage: 2.0 - 3.8 VDC Battery Type: Replaceable 3.6V, 1800mAH (single AA sized) Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.** Max Operating Temperature: -40° to 85°C (-40° to 185°F) Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F) Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F) Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure UL Rating: UL Listed to UL508-4x specifications (File E194432) Dimension: 3.7 in x 2.32 in x 1.38 in Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-IN-VM-500 Features
Voltage Meter Specifications
Variation Specifications
ALTA Industrial Specifications
ALTA 900 MHz Specifications
