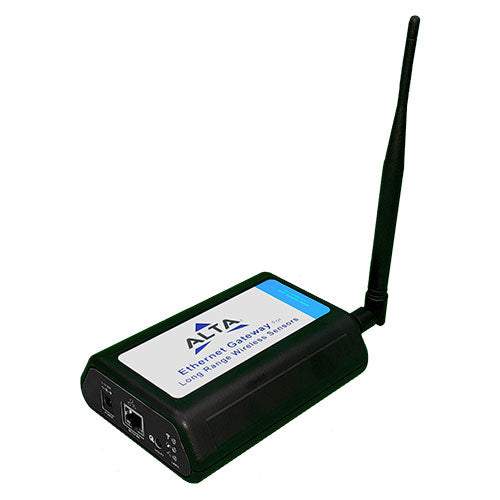

ALTA Ethernet Gateway 4 w/Power Over Ethernet, 900MHZ
Roll over image to zoom in
ALTA Ethernet Gateway 4 w/Power Over Ethernet, 900MHZ

ALTA Ethernet Gateway 4 PoE for Power Over Ethernet, 900MHZ

MonnitSKU: MNG2-9-EGW-CCE-POEA
Price:
$247

Description

Monnit’s Ethernet Gateways allow your Monnit Wireless Sensors to communicate with the iMonnit™ Online Wireless Sensor Monitoring and Notification System without the need for a PC.

This POE model has an external PoE adapter that connects to your PoE enabled switch or PoE injector for power.

It will then automatically connect with our online servers, providing the perfect solution for commercial locations where there is an active internet connection.

*If you plan to use and alternative interface to the sensors other than iMonnit.com (such as Modbus TCP, SNMP, the direct push of data from gateway to on-premise or 3rd party server, the purchase of an unlock code will allow free roaming of the data from the hardware.

Ethernet Gateway Datasheet
Ethernet Gateway QuickStart
Ethernet Gateway Manual

Monnit MNG2-9-EGW-CCE-POEA Features

  • 1,200+ foot range
  • 12+ year battery life
  • 80+ wireless sensors
  • Bank-level AES security
  • Up in 15 easy setup
  • Global ready (900, 920, 868 & 433 MHz)

    • Ethernet Gateway Specifications

  • Hardware: 10/100 Ethernet Controller
  • IEEE Standard Compliance: 802.3 – 2002
  • Operation: Full – and Half-Duplex
  • Cross-Over Correction: Automatic MDI/MDI-X
  • Protocols Supported: DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP
  • Cable Connector: RJ45
  • Input Current (no loading): 5.0 VDC @ 1A
  • LED Lights: Connectivity, Server, Network Status
  • Device Memory: Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored)

    • ALTA Commercial Ethernet Gateway Specifications

  • Dimension: 5.004 x 3.8 x 1.51 in.
  • Enclosure Material: ABS
  • LED Lights: Internet Connectivity Status, Server Status, Sensor Network Status
  • Storage Temperature:: -20 to +60°C (-4 to 140°F)
  • Operating Temperature: +5 to +45°C (41 to 113°F)

    • ALTA 900 MHz Specifications

  • Operating Frequency: 900 MHz Operating Frequency
  • Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
  • Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
