Description
Optex Wireless Door Switch with Chime
Merging together two of our finest Optex products, the TC10 Door Switch and the RC20U Chime Receiver combine efforts to alert you of incoming visitors. Easy to install and ready for immediate use, these products grant you multiple uses thanks to their compatibility with all other Optex Driveway Alarm products! After being attached to your door, the TC10 switch uses its wireless transmitter to trigger a signal to be sent to the RC20 Chime, notifying you of the arrival of friends, family or customers!

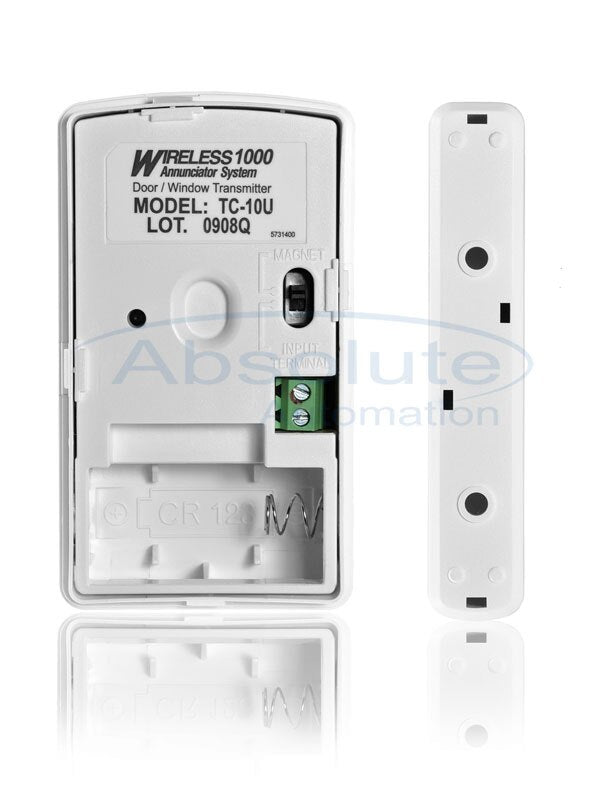

TC10U Wireless Door Switch Specifications
- Dry Contact Inputs
- Wireless Range of 700 feet
- Fits inside the battery compartment of Optex Sensors
- Can also work as a door or window sensor
- Can also be triggered by a NC Relay

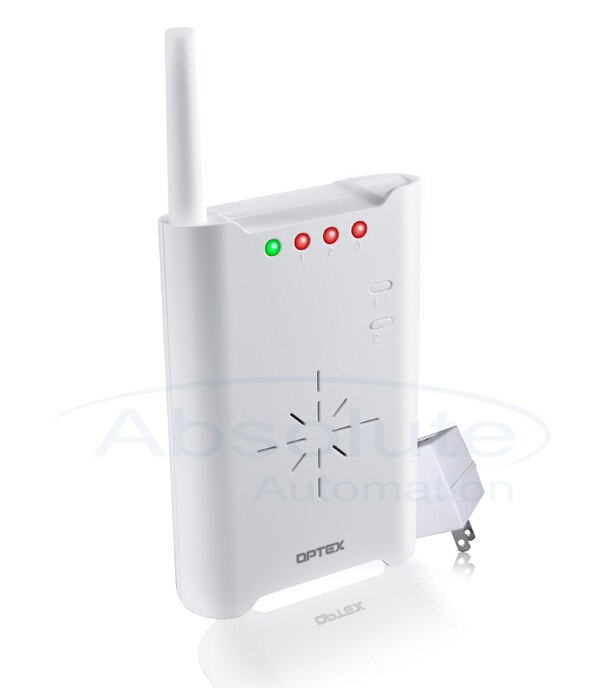

RC20U Chime Specifications
- Power Source - 9VDC Power Adapter (included)
- Chime Tones - 3 Tones and one "Latching" alarm
- Volume: Adjustable: 0~80dB/5 levels (Continuous zone: max.)
- Relay Rating: 50V AC 1A max or 24V DC 1A max.
- Output Timer: Selectable: off/1/5/30/60sec/utility output mode
- Radio Frequency: 418MHz
- Operating Temperature: 15°F to +120°F (-9°C to +60°C)
- Maximum Number of Transmitters: 9 transmitters, 3 additional on latching zone
Optex Wireless Door Switch with Chime Includes
- 1 x Optex RC20U
- 1 x Power Supply for RC-20U Chime
- 1 x Optex TC10U
