Sensaphone IMS Solution 4-20mA Interface

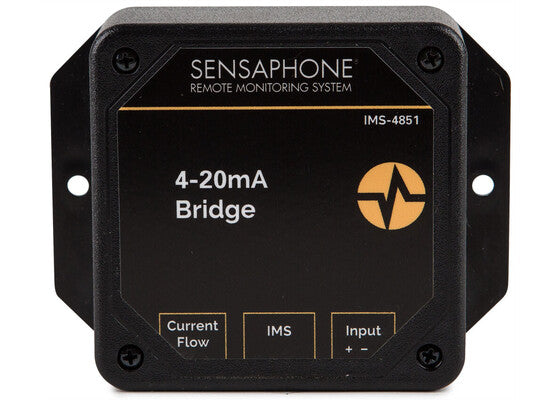

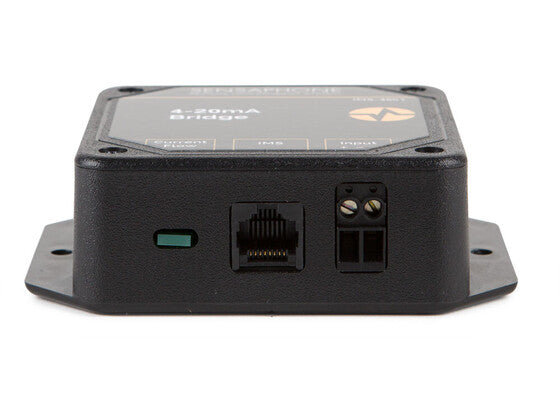

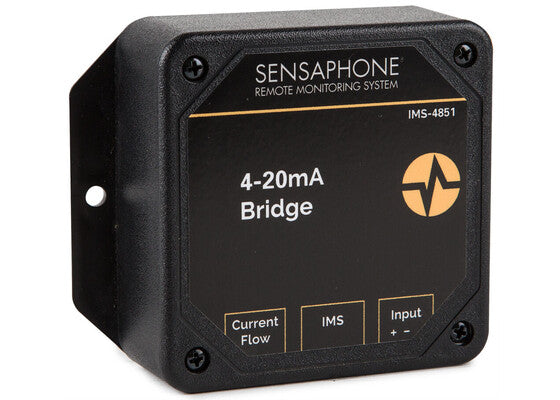

The IMS4851E 4-20mA Bridge allows you to connect a 4-20mA transducer to your Sensaphone IMS unit. The 4-20mA Bridge features optical isolation between the input and the IMS unit, which ensures trouble-free operation and safety. The electrical connection between the bridge and IMS is made via an RJ-45 patch cable (not included). The bridge may be mounted either on a wall or rest on the floor.
The connection from the sensor to the Host or Node can utilize your existing network wiring infrastructure. For example, the bridge may be installed in another room or on another floor. Connect the bridge to your structured wiring network via an RJ-45 jack. At the other end, connect a patch cable from your structured wiring patch panel directly to the Host or Node environmental input.

Sensaphone IMS4851E Solution 4-20mA Interface Features:

• Connect your IMS system to any third-party sensor that outputs a 4-20mA signal
• Optical isolation between the input and the IMS unit ensures troublefree operation and safety

Sensaphone IMS4851E Solution 4-20mA Interface Specifications:

• Name: 4-20mA Interface
• Operating Range: 32° to 122°F | 0° to 50°C
• Current Limit: 50mA Accuracy ± .25%
• Connection: RJ45
• Housing: HDPE Plastic
• Dimensions: 3.3 x 4.2 x 1.3” | 84 x 107 x 33mm
• Item Includes: 4-20mA Bridge, wall mounting hardware, 4 rubber feet
